The Velleman K8042 is a +/-15V bipolar power supply suitable for audio applications including the MS Matrix, Stereo Width Controller, Dual Class-A Headphone Amplifier or any application where low-noise bipolar supplies are needed. With the heat sinks supplied the output current capability is approximately 150 mA using a Triad WAU-20 20VRMS AC only wall-mounted transformer. (US-only for commercial and industrial applications.) The Hammond 1182F18 is an excellent dual secondary 120/240V toroid for use with the K8042. https://www.hammfg.com/part/1182F18

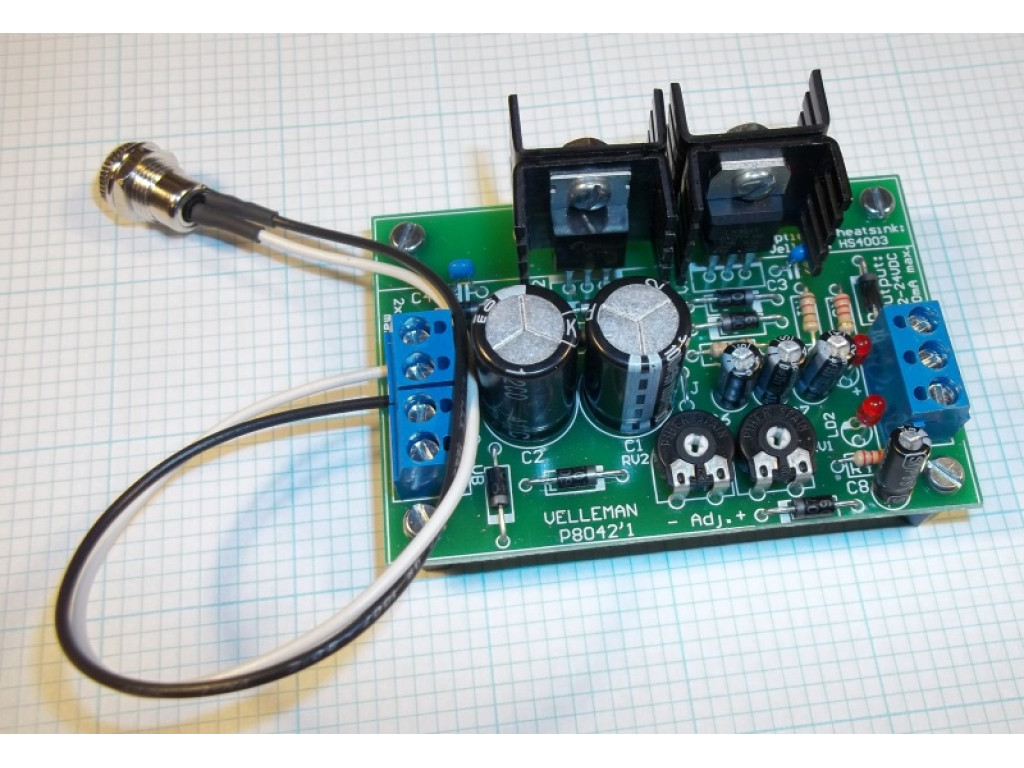

Does not include transformer. Shown with optional 2.5 mm connector and pigtail. Can also be used with dual winding and center-tapped transformers.
Low cost universal symmetric power supply
Just add a suitable transformer
Ideal for op-amp applications, amplifiers, and more.
Trimmers can be replaced by potentiometers to allow continuous adjustment of output voltage
LED output indicators
Compact size
Specifications
Positive and negative output adjustable between 1.2 and 24VDC (see table on datasheet, page 9 for voltage input/output options)
Output current: up to 2 x 1A continuous (with suitable heatsink)
Max. input voltage: 2 x 24VAC
Low ripple
Short circuit protection
Thermal protection
Dimensions: 3.1 x 2 x 0.9"
Data sheet and assembly instructions:
https://ka-electronics.com/images/pdf/Velleman_Power_Supply_K8042.pdf
Velleman K8042 Bipolar Output Linear Power Supply Assembled and Tested
- Brand: Velleman By Whadda
- Product Code: Velleman PSU-K8042-AT
- Availability: 1
-
$49.95
Related Products
Dual Class-A II Reference Headphone and Line Amp, Assembled and Tested PC Board
The "Dual Class-A II Output" (DCAO2) is a high current audio line amplifier capable of driving low i..
$299.95
Dual Class-A II Reference Headphone and Line Amp, Bare PC Board
The "Dual Class-A II Output" (DCAO2) is a high current audio line amplifier capable of driving low i..
$29.95
Mid Side Mini - Simple MS Mid-Side Encoder Decoder Matrix for Mastering, Assembled and Tested PC Board
This is an assembled and tested circuit board for the MS Matrix based on the design published in the..
$229.95
Wet Dry Mix Add - Parallel Processor for Mastering, Assembled and Tested PC Board
This is an assembled and tested circuit board for a "Wet Dry Mix Add" Parallel Processor based on th..
$269.95
Quadrature "90°" Summing Filter, Assembled and Tested PC Board
This is an assembled and tested circuit board for a "90°" Quadrature Summing Filter based on the des..
$269.95
Quadrature "90°" Summing Filter, Bare PC Board
This is a bare unassembled circuit board for a "90°" Quadrature Summing Filter based on the design p..
$39.95
Quadrature "90°" Summing Filter, Bare PC Board and Audio ICs
This is a bare unassembled circuit board and audio ICs for a "90°" Quadrature Summing Filter based o..
$59.95
Transfer Filter, 18dB/Octave High and Low Pass, Neumann HT-75 Replacement, Bare PC Board
When only a steep filter will do. This is a bare unassembled circuit board for an 18 dB/Octave, high..
$39.95
Transfer Filter, 18dB/Octave High and Low Pass, Neumann HT-75 Replacement, Assembled and Tested PC Board
When only a steep filter will do. This is an assembled and tested circuit board for an 18 dB/Octave,..
$249.95

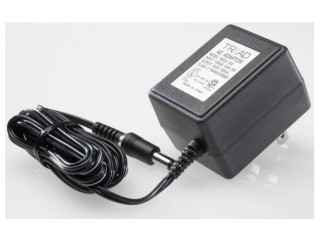

Triad WAU-20-500 20V AC, 500 mA 2.5mm Power Transformer
