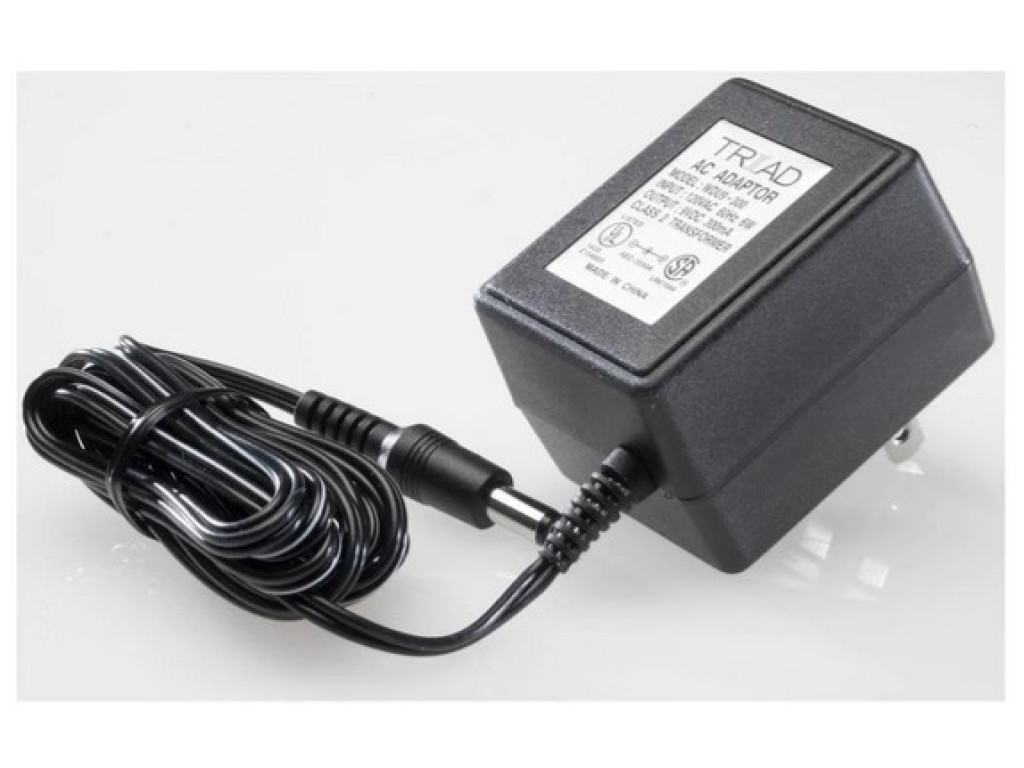

The Triad WAU-20-500 is a 20V AC 500 mA wall mounted transformer for use with the Velleman K8042 linear supply. It is ideal for lower-current applications including the Mid Side Mini, Flat Phono Preamps, RIAA EQ, ULDO-Nacho, Waveulator or any other low-current op amp circuit.
WAU20-500
Electrical Specifications (@25C)
Primary Rating: 120V 60Hz 13.5W
Primary Excitation Current: 85mA Max
Secondary Rating: 20VAC ± 5%, 500mA AC
Secondary No-Load Rating: 21.65VAC Ref.
Operating Temperature Range: -10 Deg C to +40 Deg C
Temperature Rise: 75 Deg C Max at rated load 50 Deg C Max on enclosure surface
Mechanical Parameters:
Case Type: Thermoplastic molded enclosure.
Output Cord: 24 AWG, 6 Ft. Long Min
For industrial and commercial use only in the US.
Datasheet: https://ka-electronics.com/images/pdf/Triad_WAU20-500.pdf
Triad WAU-20-500 20V AC, 500 mA 2.5mm Power Transformer
- Brand: Triad
- Product Code: Triad WAU-20-500
- Availability: 1
-
$19.95
Related Products
Velleman K8042 Bipolar Output Linear Power Supply Kit
The Velleman K8042 is a +/-15V bipolar power supply kit suitable for audio applications including th..
$19.95

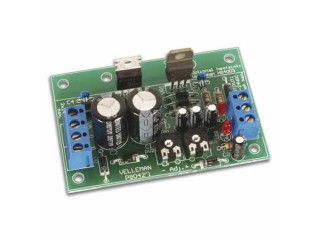

Velleman K8042 Bipolar Output Linear Power Supply Assembled and Tested
